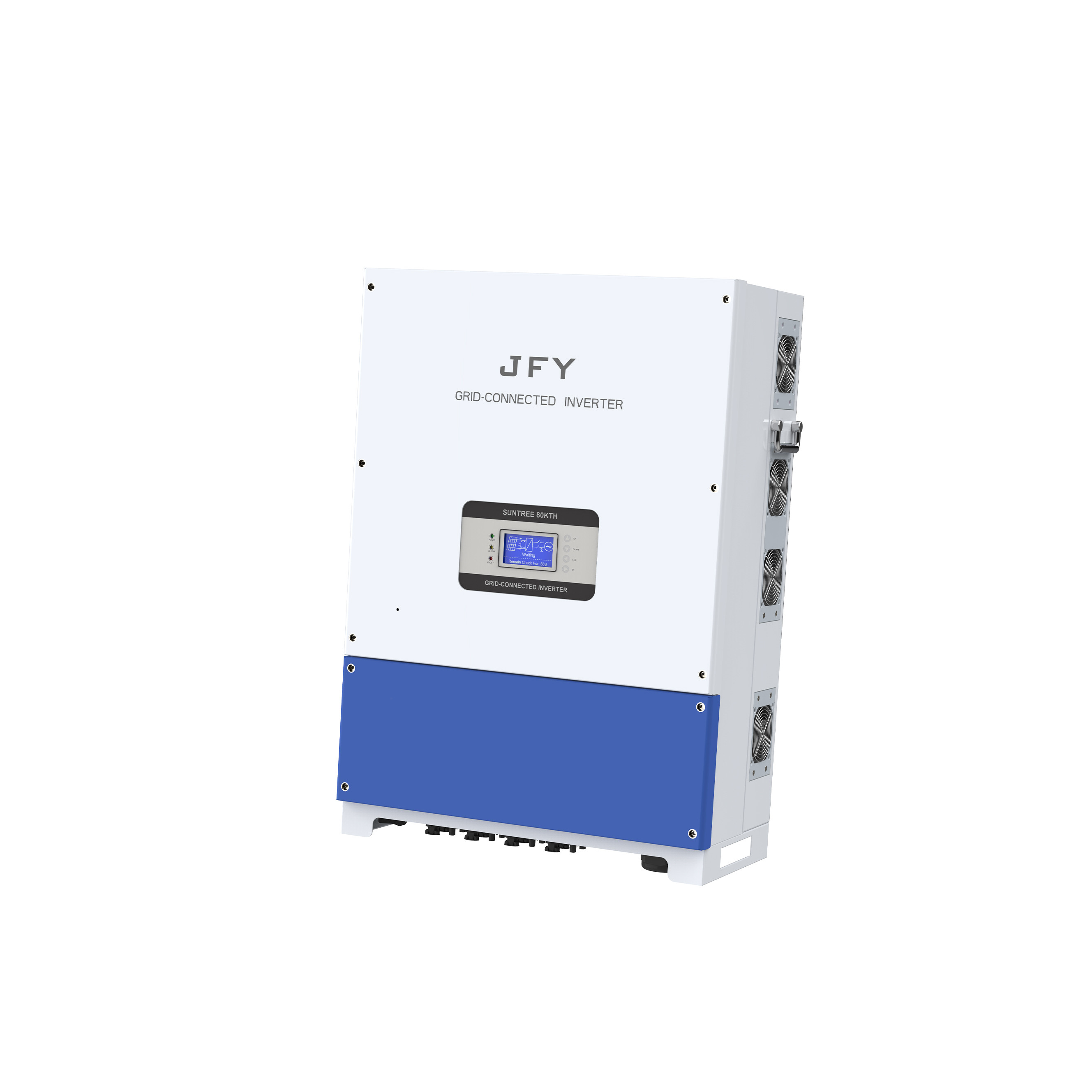

50KW三相光伏并网逆变器
SUNTREE Series 50K-60KTL+
Three Phase String Inverter
| Technical data | 50KTL | 60KTL |
| 光伏输入 | ||
| 最大光伏输入功率 | 56000W | 66000W |
| 最大直流电压 | 1100Vdc | |
| 启动电压 | 250Vdc | |
| MPPT电压范围 | 200-1000Vdc | |
| 输入数量 | 8 | |
| MPPT路数 | 4 | |
| 最大输入电流 | 4*30A | |
| 交流输出 | ||
| 额定输出功率 | 50000W | 60000W |
| 最大输出功率 | 56000VA | 66000VA |
| 额定输出电流 | 72.2A | 86.6A |
| 最大输出电流 | 79.4A | 95.3A |
| 额定输出电压 | 400Vac | |
| 输出电压范围 | 323~480Vac | |
| 电网频率范围 | 50/60HZ+5 | |
| 功率因数（cosΦ） | 0.8 (leading)-0.8 (lagging) | |
| 谐波电流 | <3% | |
| 效率 | ||
| 最大效率 | 98.5% | 98.8% |
| 欧洲效率 | 98.1% | 98.2% |
| MPPT效率 | 99.9% | 99.9% |
| 保护 | ||
| 内置保护 | DC Reverse Polarity, Short Circuit, Output Over Current, Output Over Voltage, Insulation Resistance Monitoring,Residual Current Detection, Surge Protection, Anti-Island Protection, Over Temperature Protection | |
| 防雷 | DC Type ||/AC Type || | |
| 通用数据 | ||
| 工作温度 | -25~+60°C | |
| 噪音 | ≤60dB (A) | |
| 夜间功耗 | <2W | |
| 电气隔离 | Transformerless | |
| 冷却方式 | Intelligent Fan cooling | |
| 防护等级 | IP65 | |
| 通讯：RS232/WiFi/4G | yes/opt/opt/opt | |
| 尺寸(W*D*H mm) | 545*270*782mm | |
| 重量(kg) | 58kg | 62kg |
