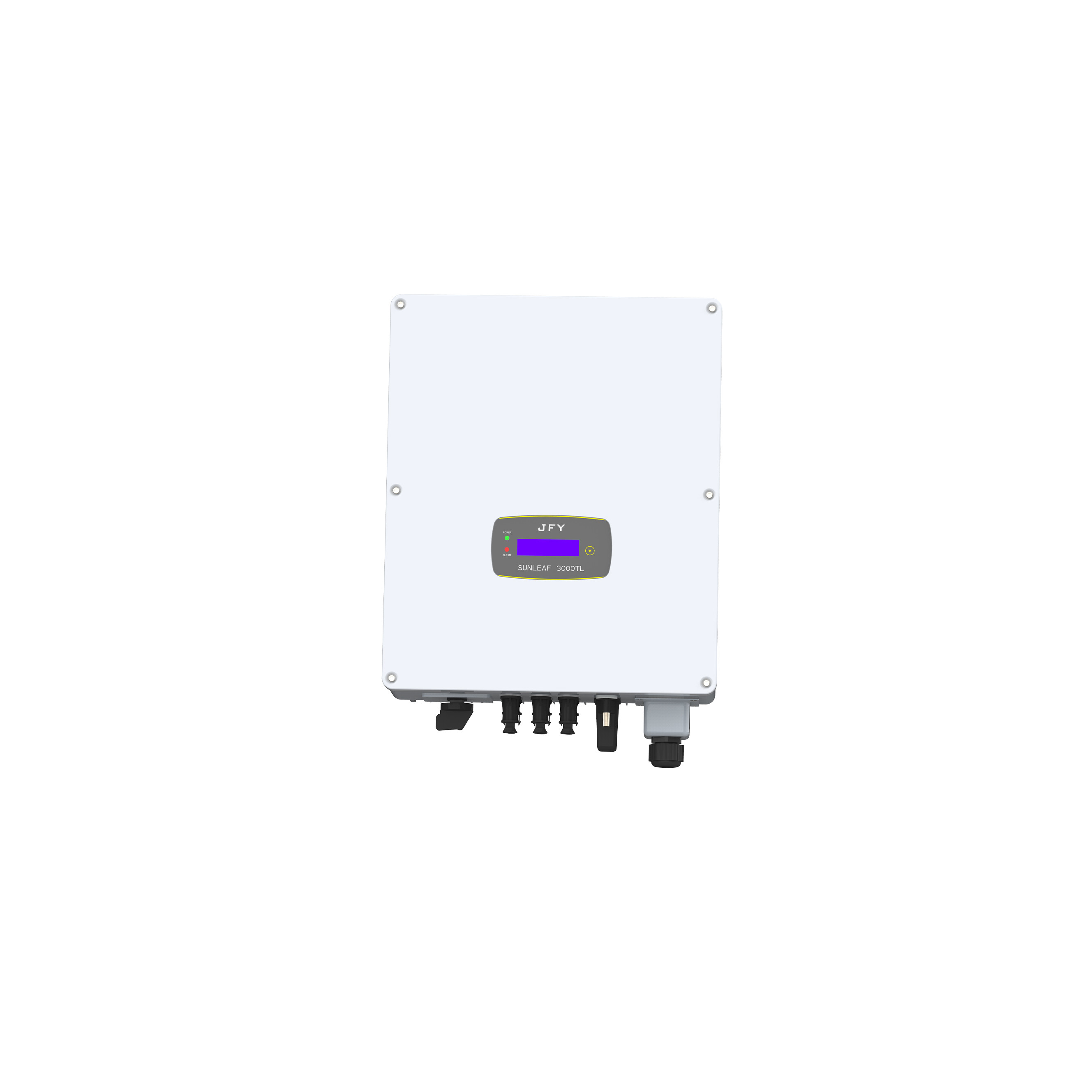

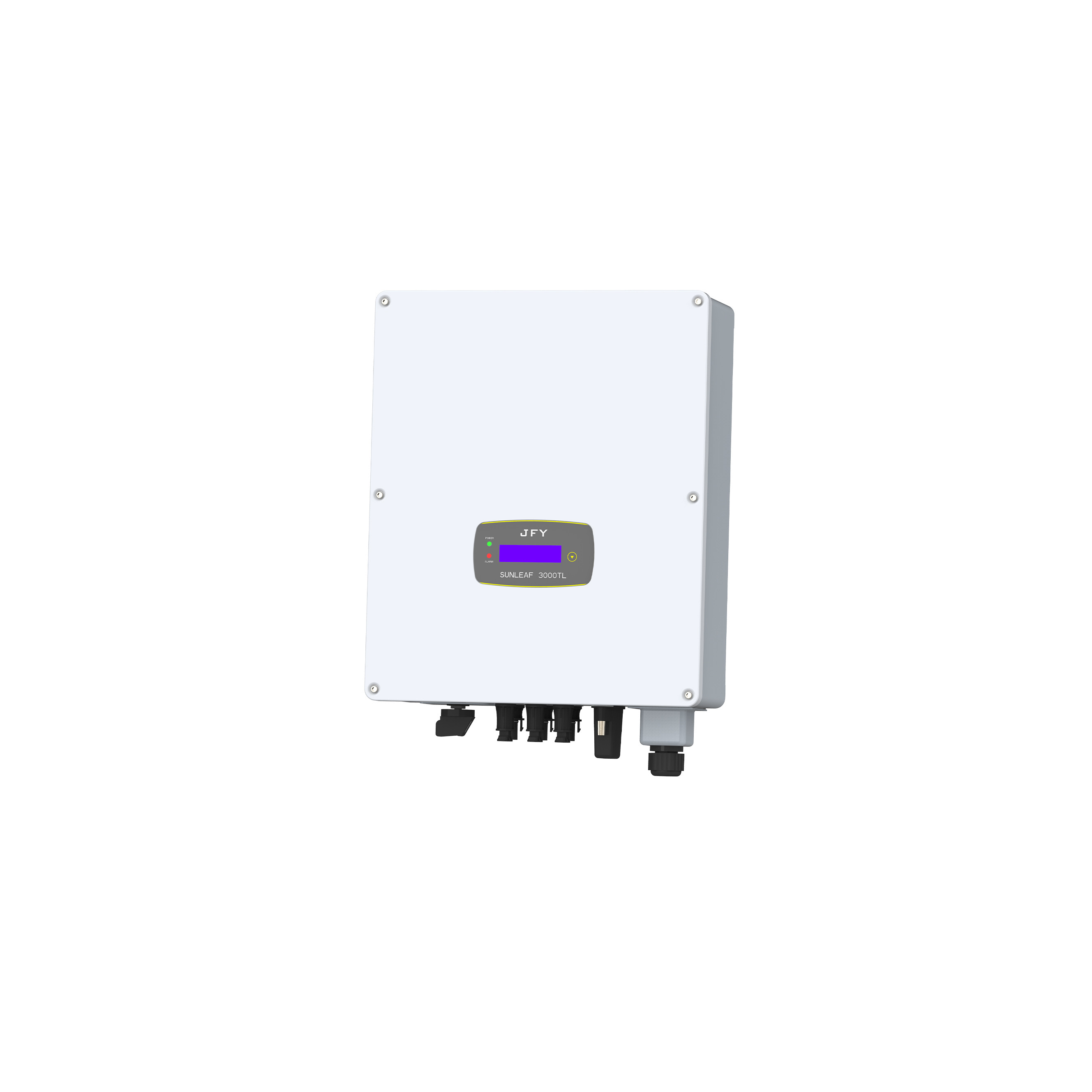

3KW单相光伏并网逆变器
| Technical data | 3000TL | 4000TL | 5000TL | 6000TL | 7000TL | 8000TL |
| 光伏输入 | ||||||
| 最大光伏输入功率 | 3900W | 5200W | 6500W | 7800W | 9100W | 10400W |
| 最大直流电压 | 500Vdc | 600Vdc | ||||
| 启动电压 | 120Vdc | |||||
| MPPT电压范围 | 100-450Vdc | 100-500Vdc | ||||
| 输入数量 | 2 | 3 | ||||
| MPPT路数 | 2 | |||||
| 最大输入电流 | 2*15A | 15/30A | ||||
| 交流输出 | ||||||
| 额定输出功率 | 3000W | 4000W | 5000W | 6000W | 7000W | 8000W |
| 最大输出功率 | 3300VA | 4400VA | 5500VA | 6600VA | 7700VA | 8800VA |
| 额定输出电流 | 13A | 17.4A | 21.5A | 26.1A | 30.4A | 34.8A |
| 最大输出电流 | 15A | 20A | 25A | 27.5A | 31.8A | 36.4A |
| 额定输出电压 | 230Vac | |||||
| 输出电压范围 | 170-280Vac | |||||
| 电网频率范围 | 50/60HZ±5 | |||||
| 功率因数（cosΦ） | 0.8 (leading)~0.8 (lagging) | |||||
| 谐波电流 | <3% | |||||
| 效率 | ||||||
| 最大效率 | 97.50% | 97.60% | 97.80% | |||
| 欧洲效率 | 97.20% | 97.30% | 97.30% | |||
| MPPT效率 | 99.90% | |||||
| 保护 | ||||||
| 内置保护 | DC Reverse Polarity, Short Circuit, Output Over Current, Output Over Voltage, Insulation Resistance Monitoring,Residual Current Detection, Surge Protection, Anti-Island Protection, Over Temperature Protection | |||||
| 防雷 | DC Type ||/AC Type || | |||||
| 通用数据 | ||||||
| 工作温度 | -25~+60°C | |||||
| 噪音 | ≤25dB (A) | |||||
| 夜间功耗 | <1W | |||||
| 电气隔离 | Transformerless | |||||
| 冷却方式 | Natural cooling | |||||
| 防护等级 | IP65 | |||||
| 通讯：RS232/WiFi/4G | yes/opt/opt | |||||
| 尺寸(W*D*H mm) | 360*135*390mm | 360*180*430mm | ||||
| 重量(kg) | 14.5kg | 18kg | 18.3kg | |||
