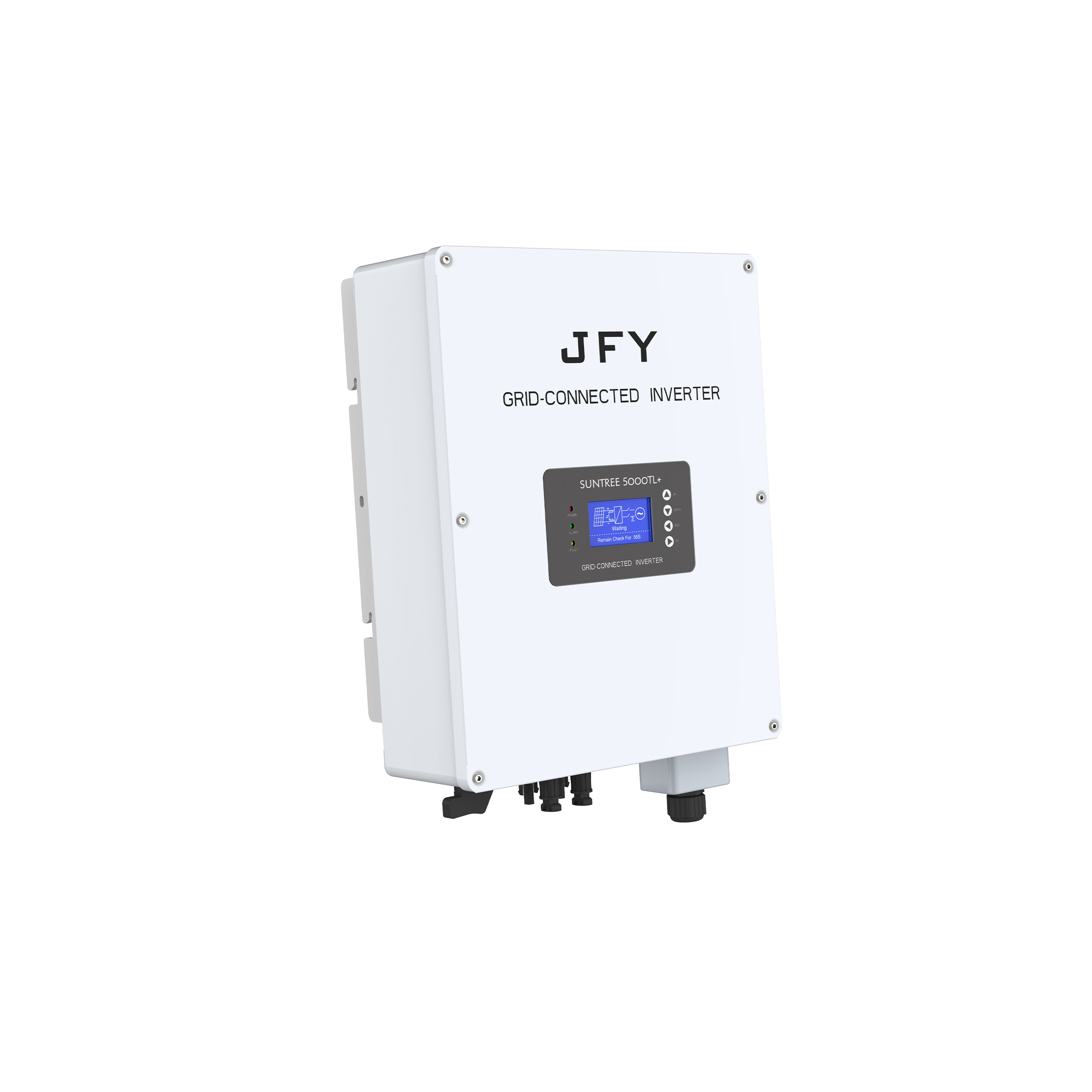

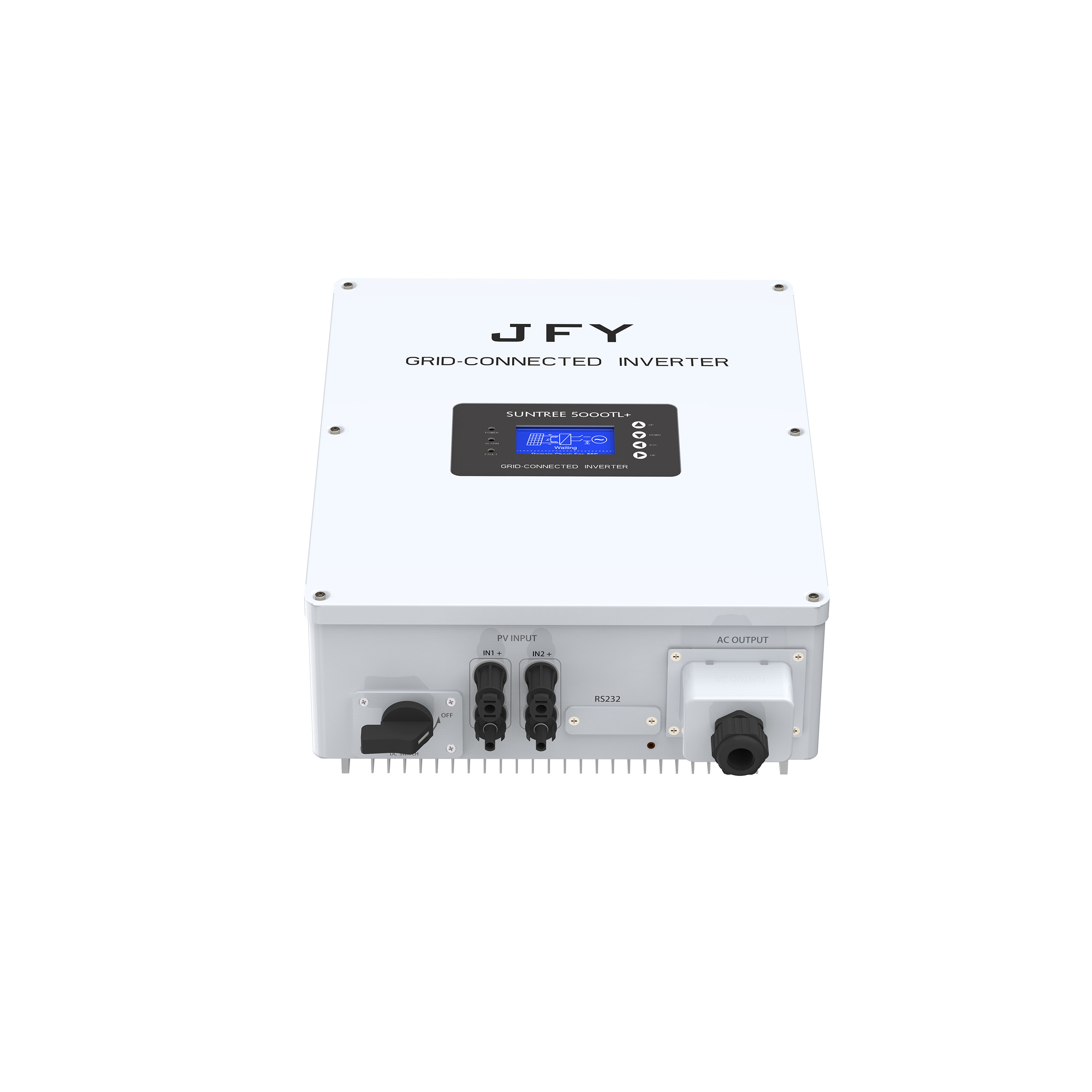

12KW三相光伏并网逆变器
SUNTREE Series 5K-12KTL+
Three Phase String Inverter
| Technical data | 5000TL+ | 6000TL+ | 8000TL+ | 10000TL+ | 12000TL+ |
| 光伏输入 | |||||
| 最大光伏输入功率 | 6500W | 7500W | 9600W | 12000W | 14400W |
| 最大直流电压 | 900Vdc | 1000Vdc | |||
| 启动电压 | 200Vdc | ||||
| MPPT电压范围 | 200-850Vdc | 200-1000Vdc | |||
| 输入数量 | 1 | 1 | 2 | 2 | 2 |
| MPPT路数 | 1 | 1 | 2 | 2 | 2 |
| 最大输入电流 | 20A | 2*20A | |||
| 交流输出 | |||||
| 额定输出功率 | 5000W | 6000W | 8000W | 10000W | 12000W |
| 最大输出功率 | 6500VA | 7500VA | 9600VA | 12000VA | 14400VA |
| 额定输出电流 | 7.2A | 8.7A | 11.6A | 14.4A | 17.3A |
| 最大输出电流 | 7.9A | 9.5A | 12.7A | 15.8A | 19A |
| 额定输出电压 | 400Vac | ||||
| 输出电压范围 | 323-480Vac | ||||
| 电网频率范围 | 50/60HZ+5 | ||||
| 功率因数（cosΦ） | 0.8 (leading)-0.8 (lagging) | ||||
| 谐波电流 | <3% | ||||
| 效率 | |||||
| 最大效率 | 97.60% | 97.80% | 98.10% | ||
| 欧洲效率 | 97.10% | 97.30% | 97.30% | 97.50% | 97.60% |
| MPPT效率 | 99.80% | ||||
| 保护 | |||||
| 内置保护 | DC Reverse Polarity, Short Circuit, Output Over Current, Output Over Voltage, Insulation Resistance Monitoring,Residual Current Detection, Surge Protection, Anti-Island Protection, Over Temperature Protection | ||||
| 防雷 | DC Type ||/AC Type || | ||||
| 通用数据 | |||||
| 工作温度 | -25~+60°C | ||||
| 噪音 | ≤30dB (A) | ||||
| 夜间功耗 | <2W | ||||
| 电气隔离 | Transformerless | ||||
| 冷却方式 | Natural cooling | ||||
| 防护等级 | IP65 | ||||
| 通讯：RS232/WiFi/4G | yes/opt/opt/opt | ||||
| 尺寸(W*D*H mm) | 355*190*450mm | ||||
| 重量(kg) | 18kg | ||||
