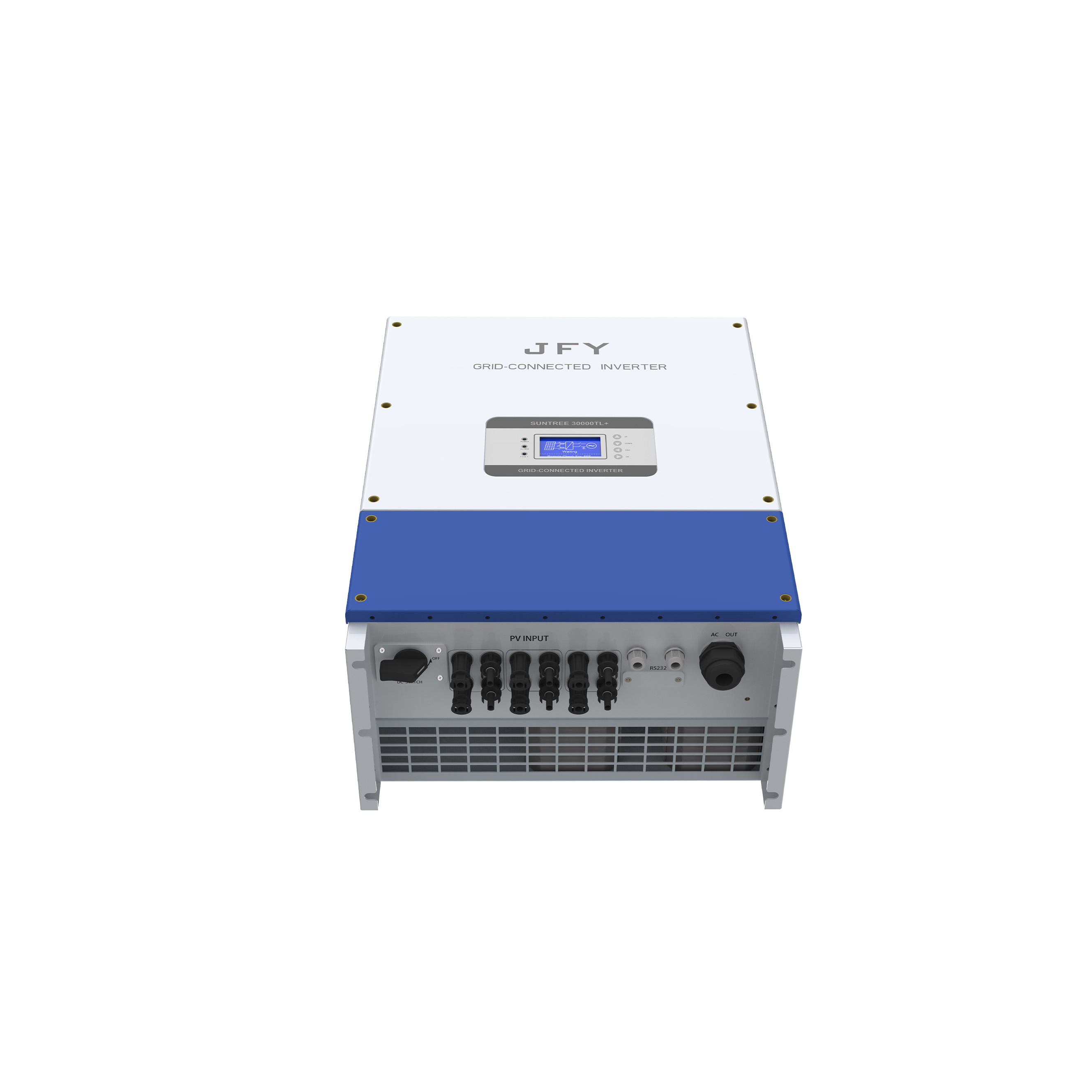

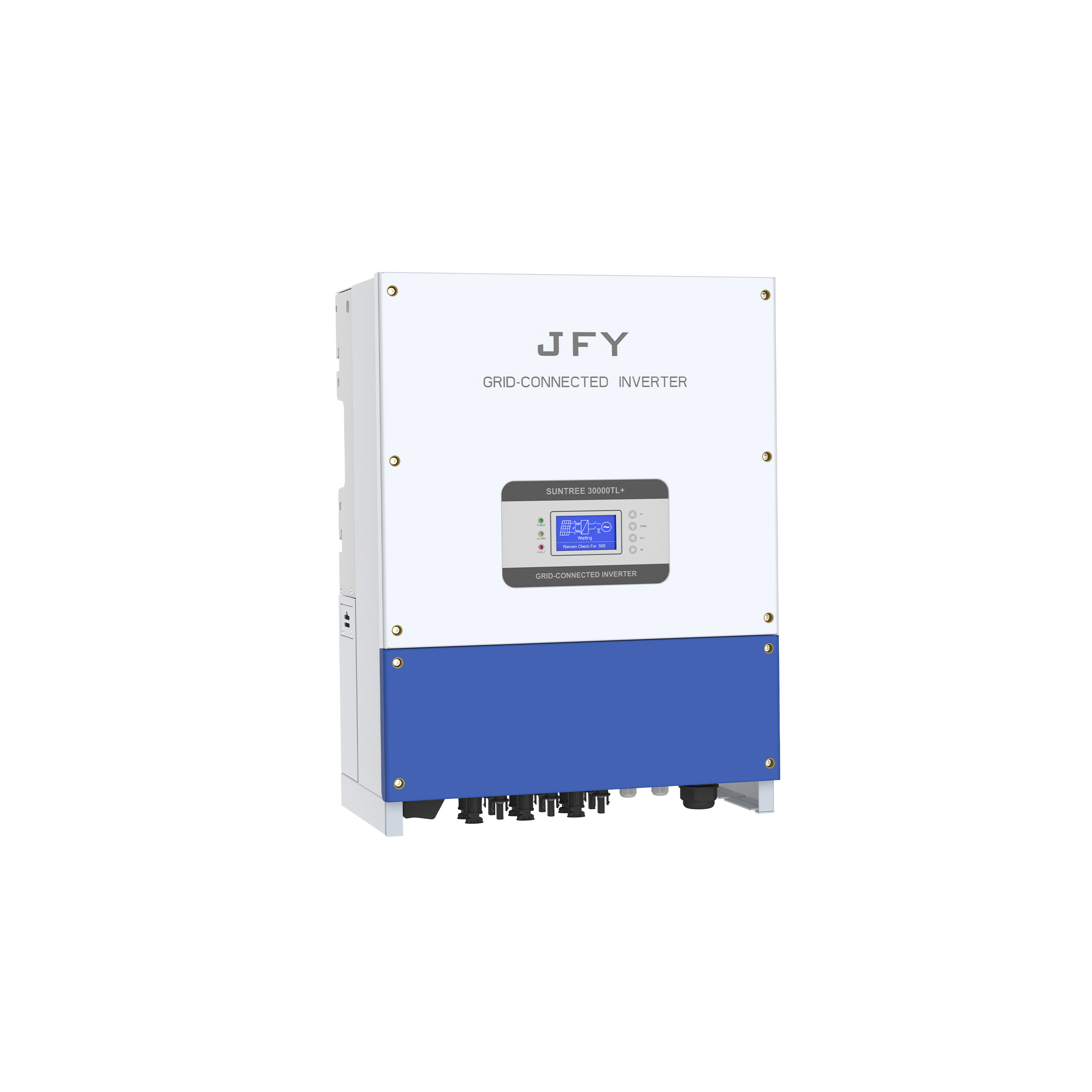

30KW三相光伏并网逆变器
SUNTREE Series 30K-40KTL+
Three Phase String Inverter
| Technical data | 30000TL+ | 33000TL+ | 40000TL+ |
| 光伏输入 | |||
| 最大光伏输入功率 | 36000W | 36000W | 48000W |
| 最大直流电压 | 1100Vdc | ||
| 启动电压 | 250Vdc | ||
| MPPT电压范围 | 250~1000Vdc | ||
| 输入数量 | 6 | ||
| MPPT路数 | 3 | ||
| 最大输入电流 | 3*30A | ||
| 交流输出 | |||
| 额定输出功率 | 30000W | 33000W | 40000W |
| 最大输出功率 | 36000VA | 36000VA | 45000VA |
| 额定输出电流 | 45.5A | 50A | 60A |
| 最大输出电流 | 50A | 55A | 66A |
| 额定输出电压 | 400Vac | ||
| 输出电压范围 | 360~440Vac | ||
| 电网频率范围 | 50/60HZ+5 | ||
| 功率因数（cosΦ） | 0.8 (leading)-0.8 (lagging) | ||
| 谐波电流 | <3% | ||
| 效率 | |||
| 最大效率 | 98.2% | ||
| 欧洲效率 | 97.6% | 97.7% | 98.0% |
| MPPT效率 | 99.9% | ||
| 保护 | |||
| 内置保护 | DC Reverse Polarity, Short Circuit, Output Over Current, Output Over Voltage, Insulation Resistance Monitoring,Residual Current Detection, Surge Protection, Anti-Island Protection, Over Temperature Protection | ||
| 防雷 | DC Type ||/AC Type || | ||
| 通用数据 | |||
| 工作温度 | -25~+60°C | ||
| 噪音 | ≤50dB (A) | ||
| 夜间功耗 | <2w | ||
| 电气隔离 | Transformerless | ||
| 冷却方式 | Intelligent Fan cooling | ||
| 防护等级 | IP65 | ||
| 通讯：RS232/WiFi/4G | yes/opt/opt/opt | ||
| 尺寸(W*D*H mm) | 476*258*630mm | ||
| 重量(kg) | 42kg | ||
